Greensteam
Efficient energy from biomass

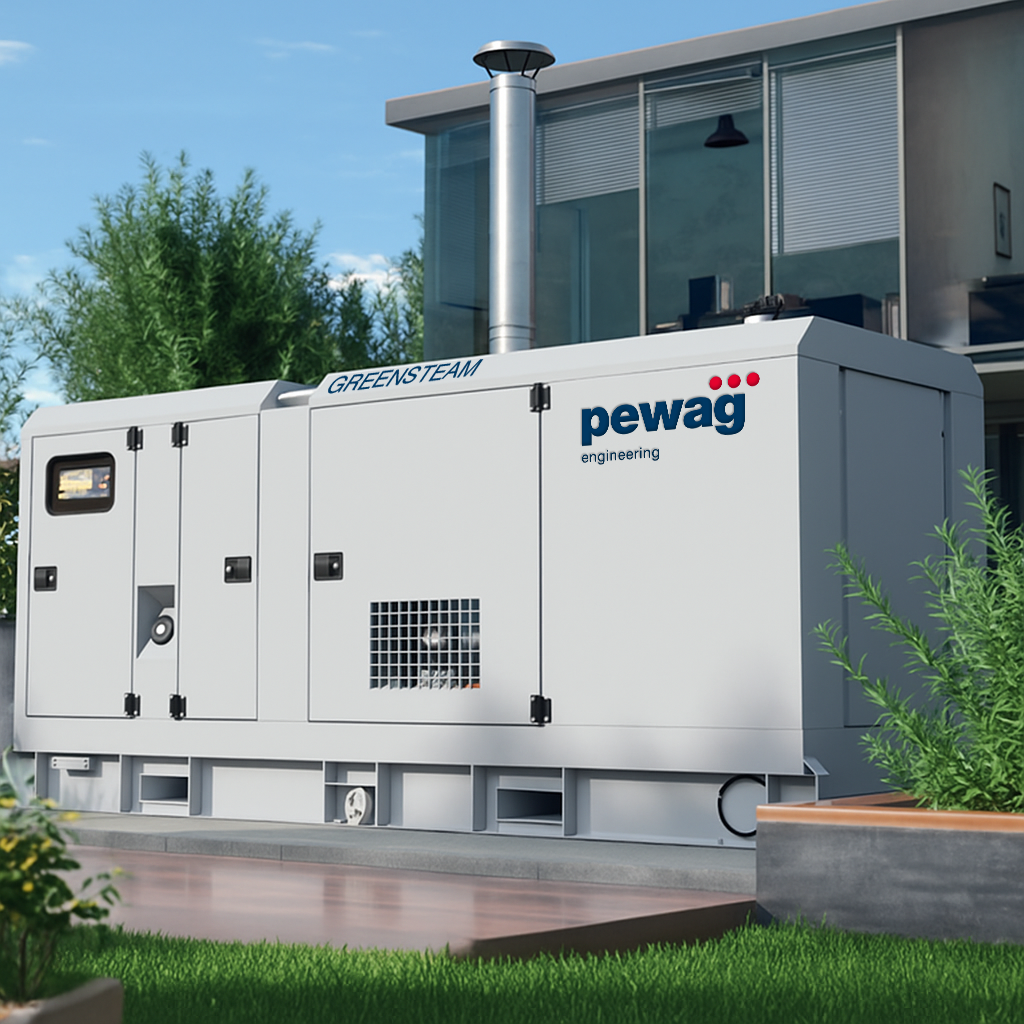

Micro-CHP system based on an innovative, fuel-flexible biomass-fired steam generator and a micro steam turbine
Powering Tomorrow
✓ CO2 targets require immediate action: CHP plants using renewable fuels make a direct contribution to achieving the EU's climate targets (-55% emissions by 2030, climate neutrality by 2050).
✓ Efficiency counts twice: By generating electricity and heat simultaneously, CHP systems meet the requirements for greater energy efficiency and reduce primary energy consumption.
✓ Decarbonization of heat and electricity is crucial: The heating sector is lagging behind – biomass CHP enables fossil-free heat supply in municipalities and industry.
✓ Renewable and secure supply: Biomass CHP delivers controllable, renewable energy – this ensures supply while reducing fossil fuel dependencies.
Why invest in a new CHP plant now?
Areas of application
Existing heating plants and energy suppliers also for base load coverage in summer
Municipalities
Decentralized heating networks
Hotels and wellness facilities
Multi-unit residential buildings in rural areas
Small industrial businesses
Schools
Decentralized
consumers
Forestry and agricultural businesses
Wood processing companies such as sawmills, carpentry shops, pellet and wood chip plants
Decentralized operations with their own fuel
Technological advantages over competitors:
✓ Comprehensive fuel flexibility, from low-quality moist wood chips to agricultural waste
✓ Low maintenance and operating costs thanks to robust steam boiler technology and inexpensive fuels
✓ No trained boiler operator required for operation, as the patented design enables classification as a low-risk system in accordance with boiler regulations
✓ High overall efficiency of 90 %
✓ Reduced investment costs due to cascade connection of several steam boilers
→ up to three steam generators can supply one turbine

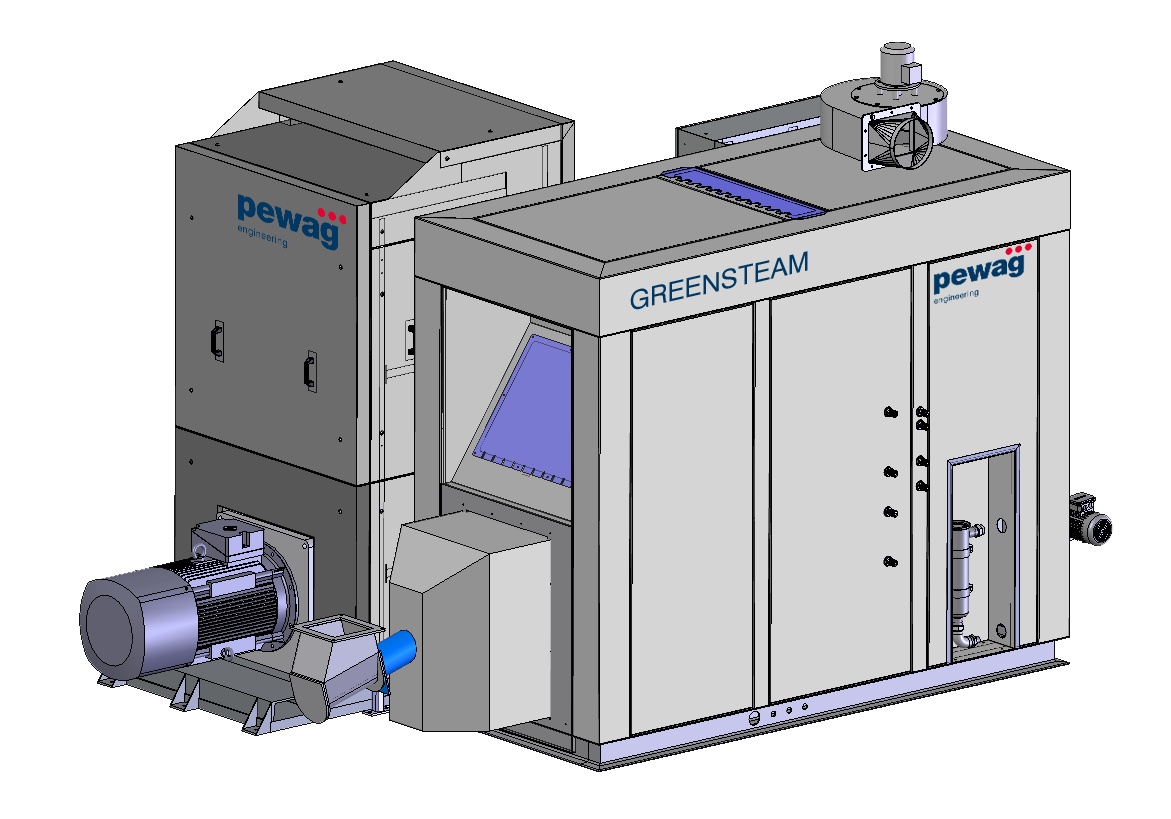

MultiFuel-CHP consisting of
Biomass grate furnace:
Fuel-flexible grate furnace with 170 kW-fuel power and low emissions thanks to multi-stage combustion and particle separation.
A wide range of biomass fuels can be used:
✓ From high-quality wood chips to agricultural and forestry residues
✓ Water content up to M50
✓ Particle size up to G60
Steam generator:
✓ Patented, innovative boilerless steam generator with a steam power of approx.160 kW
✓ No steam boiler operator or additional training for the operator required thanks to the special design
✓ Low-maintenance operation thanks to separation of combustion and power generation via steam cycle with high overall efficiency of up to 90 %
Micro steam turbine & heat utilisation:
✓ Conversion of superheated steam into electricity in a highly efficient microturbine generator unit with an electrical output of 21 kW
✓ Supplying around 130 kW of heat for use as process heat or for heating purposes
Usable fuels
Wood chips
Forestry waste with needles and bark
Harvest residues
Residues from
the food industry
Straw
Manure
